Radial SIDAC with 430V varistor voltage, 275VAC/350VDC max voltage rating, and 10kA max surge current. Features 100A clamping current at 710V clamping voltage and 303J energy absorption. Encased in a metal package with radial leads, this component operates from -40°C to 85°C and is RoHS compliant.
PackageMetal
Capacitance1nF
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Panasonic ERZ-V20D431 technical specifications.
General
| Capacitance | 1nF |
| Package/Case | Metal |
| Clamping Current | 100A |
| Clamping Voltage | 710V |
| Depth | 6.4mm |
| Diameter | 20mm |
| Energy | 303J |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Lead/Base Style | Radial |
| Material | Zinc |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 10kA |
| Max Voltage Rating (AC) | 275V |
| Max Voltage Rating (DC) | 350V |
| Mount | Radial, Through Hole |
| Mounting Style | Leaded |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | V |
| Termination | Radial |
| Thickness | 6.4mm |
| Varistor Voltage | 430V |
| Voltage Rating (AC) | 275V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERZ-V20D431 Datasheet
Download the complete datasheet for Panasonic ERZ-V20D431 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

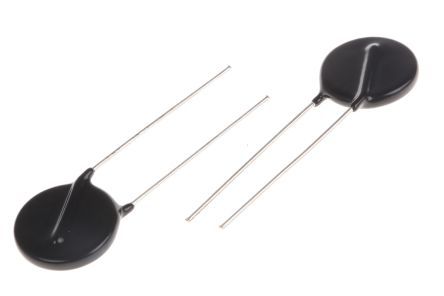

Product Images
