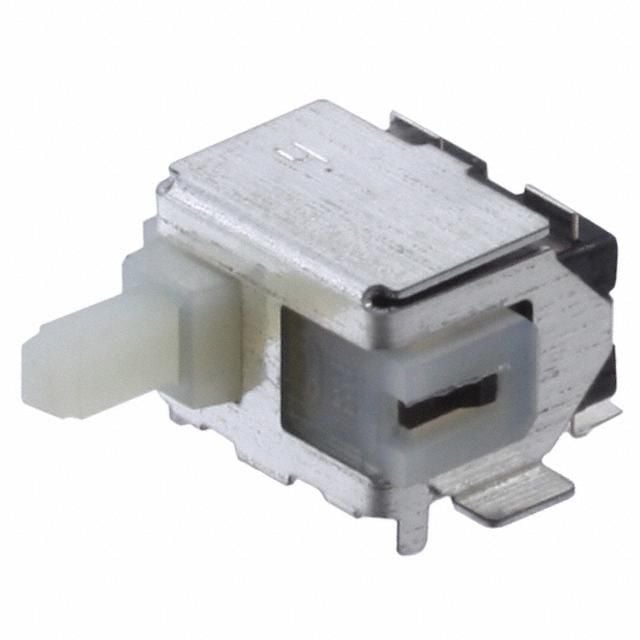

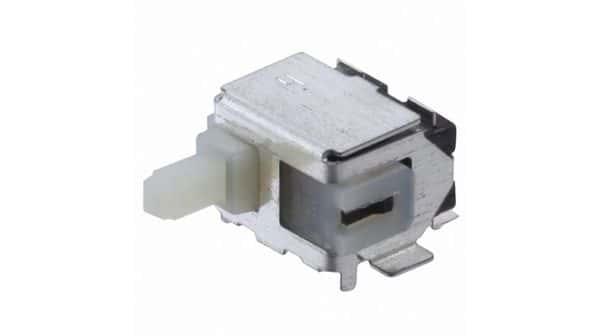

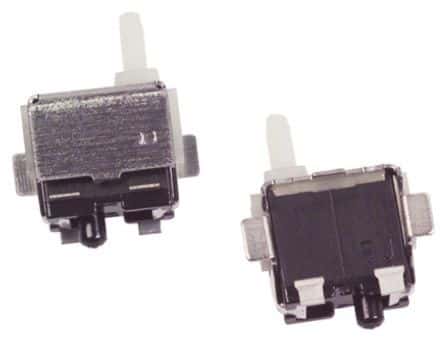

SPST-NO detector switch featuring a 10mA contact current rating and 5V DC voltage rating. This surface mount, PCB-compatible component offers a right-angle orientation with a plunger actuator and gull wing termination. It boasts a 35gf operating force, 500,000 cycle electrical and mechanical life, and operates within a -10°C to 70°C temperature range. Lead-free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ESE-11MH2T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ESE-11MH2T technical specifications.
| Actuator Length | 2.4mm |
| Actuator Type | PLUNGER |
| Body Depth | 7.1mm |
| Body Height | 4.25mm |
| Body Length | 6.4mm |
| Contact Current Rating | 10mA |
| Current Rating | 10mA |
| Electrical Life | 50000Cycles |
| Height | 4.25mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 5V |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount, PCB |
| Operating Force | 35gf |
| Orientation | Right Angle |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ESE11 |
| Switch Function | Off-Mom |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 5V |
| Width | 6.4mm |
| RoHS | Compliant |
