Surface mount, PCB-mounted detector switch with a SPST-NO throw configuration. Features a 10mA contact current rating and a 5V DC maximum voltage rating. This right-angle mounted switch offers a 1.95mm toggle actuator and a 30gf operating force, with electrical and mechanical life ratings of 50,000 cycles. Dimensions include a 3.6mm body length, 4.2mm body depth, and 1.2mm body height.
Current Rating10mA
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Panasonic ESE-13V01B technical specifications.
General
| Actuator Length | 1.95mm |
| Actuator Type | Toggle |
| Body Depth | 4.2mm |
| Body Height | 1.2mm |
| Body Length | 3.6mm |
| Contact Current Rating | 10mA |
| Current Rating | 10mA |
| Electrical Life | 50000Cycles |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 60°C |
| Max Voltage Rating (DC) | 5V |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount, PCB |
| Operating Force | 30gf |
| Orientation | Right Angle |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ESE13 |
| Switch Function | Off-Mom |
| Termination | J-Bend |
| Throw Configuration | SPST |
| DC Rated Voltage | 5V |
| Width | 3.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ESE-13V01B Datasheet
Download the complete datasheet for Panasonic ESE-13V01B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

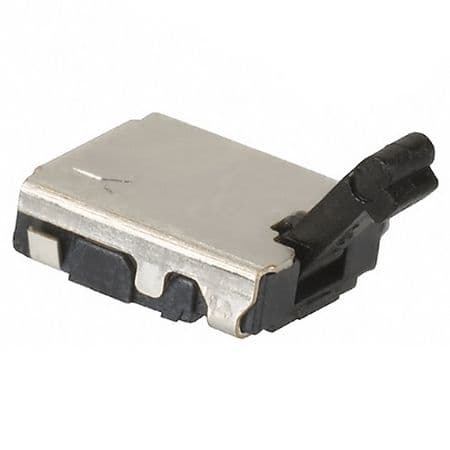

Product Images
