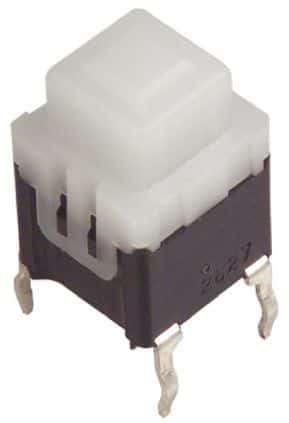

Illuminated & Non-Illuminated Pushbutton Switch featuring a momentary SPST (Single Pole Single Throw) contact. This through-hole mount component offers a square plunger actuator and PC pin terminations, rated for 0.1A and 14VDC. Operating between -30°C and 80°C, it requires a 4N operating force and is supplied in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ESE-20C343 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ESE-20C343 technical specifications.
| Actuator Type | Square, Button |
| Contact Current Rating | 100mA |
| Current Rating | 100mA |
| Depth | 8.15mm |
| Lead Free | Lead Free |
| Length | 7.9mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 14V |
| Mount | Through Hole, PCB |
| Number of Positions | 2 |
| Operating Force | 4N |
| Orientation | Straight |
| Package Quantity | 60 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ESE20C |
| Switch Function | Off-Mom |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 14V |
| RoHS | Compliant |
