SPST-NO detector switch featuring a right-angle SMD/SMT mounting style. Offers a 10mA contact current rating and a 5V DC voltage rating. Designed with a 2mm toggle actuator and a 30gf operating force. Provides 50,000 cycles of electrical and mechanical life. RoHS compliant and lead-free.
PackageSMD/SMT
Voltage Rating5V
Current Rating10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ESE-22MH54 technical specifications.
General
| Actuator Length | 2mm |
| Actuator Type | Toggle |
| Body Depth | 4.55mm |
| Body Height | 2.85mm |
| Body Length | 6.15mm |
| Package/Case | SMD/SMT |
| Contact Current Rating | 10mA |
| Current Rating | 10mA |
| Electrical Life | 50000Cycles |
| Height | 2.85mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (DC) | 5V |
| Mount | Surface Mount |
| Operating Force | 30gf |
| Orientation | Right Angle |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ESE22 |
| Switch Function | Off-Mom |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| Width | 4.55mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ESE-22MH54 Datasheet
Download the complete datasheet for Panasonic ESE-22MH54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

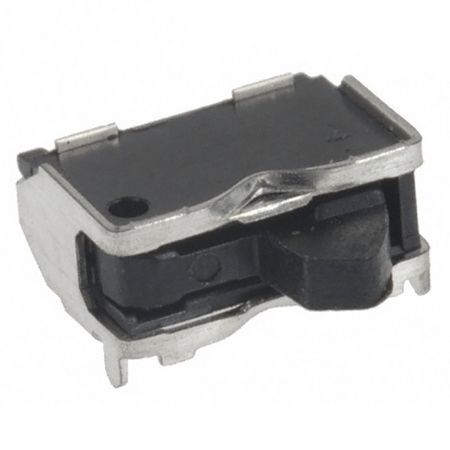

Product Images
