Surface mount fixed inductor with 2µH inductance and 30% tolerance. Features a ferrite, metal, and composite core, offering a 12.5A DC current rating and 10.7A RMS current. This shielded component has a low DC resistance of 3.3mΩ and operates within a temperature range of -40°C to 150°C. Packaged in tape and reel for automated assembly.
PackageSMD/SMT
Resistance3.3mR
Current Rating12.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ETQ-P6F2R0HFA technical specifications.
General
| Package/Case | SMD/SMT |
| Core Material | Ferrite, Metal, Composite |
| Current Rating | 12.5A |
| DC Current | 12.5A |
| DC Resistance (DCR) | 3.3mR |
| Depth | 12.8mm |
| Height | 5.7mm |
| Inductance | 2uH |
| Inductance Tolerance | 30% |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Max DC Current | 12.5A |
| Max Operating Temperature | 150°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 3.3mR |
| RMS Current (Irms) | 10.7A |
| RoHS Compliant | Yes |
| Saturation Current | 10.7A |
| Series | PCC-F126F (N6) |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Width | 12.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ETQ-P6F2R0HFA Datasheet
Download the complete datasheet for Panasonic ETQ-P6F2R0HFA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

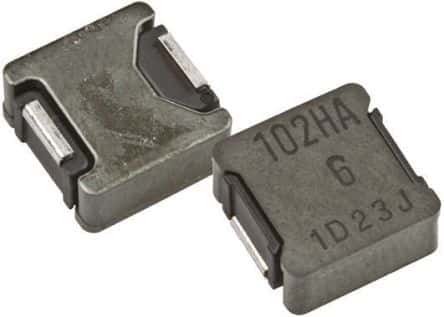

Product Images
