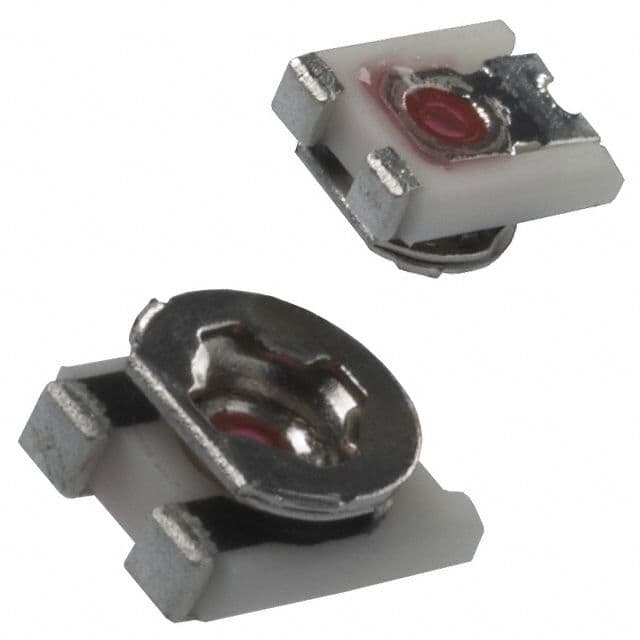

Surface mount cermet trimmer resistor with 100kR resistance and 25% tolerance. Features a linear taper, 150mW maximum power dissipation, and a 50V voltage rating. Operating temperature range is -40°C to 100°C. Dimensions are 2.75mm (L) x 2.2mm (W) x 1.05mm (H). Packaged on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVM-2WSX80B15 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EVM-2WSX80B15 technical specifications.
| Color | Silver |
| Depth | 2.75mm |
| Height | 1.05mm |
| Length | 2.75mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Number of Turns | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 100kR |
| Resistance Tolerance | 25% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | EVM |
| Taper | Linear |
| Technology | CERMET |
| Termination | SMD/SMT |
| Tolerance | 25% |
| Voltage Rating | 50V |
| Weight | 17mg |
| Width | 2.2mm |
| RoHS | Compliant |
