The EVN-D8AA03B14 is a variable resistor from Panasonic with a voltage rating of 50V and a resistance of 10kR. It has a tolerance of 30% and a maximum power dissipation of 100mW. This resistor is designed for through hole mounting on a PCB and is available in bulk packaging with 500 units per package.
Resistance10kR
Voltage Rating50V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic EVN-D8AA03B14 technical specifications.
General
| Color | Orange, Yellow |
| Height | 0.256inch |
| Lead Free | Lead Free |
| Length | 6.7mm |
| Max Power Dissipation | 100mW |
| Mount | Through Hole, PCB |
| Number of Turns | 1 |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Resistance | 10kR |
| Resistor Type | Carbon |
| Series | EVN-D8A |
| Taper | Linear |
| Technology | CARBON COMPOSITION |
| Termination | PC Pin |
| Tolerance | 30% |
| Voltage Rating | 50V |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVN-D8AA03B14 Datasheet
Download the complete datasheet for Panasonic EVN-D8AA03B14 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

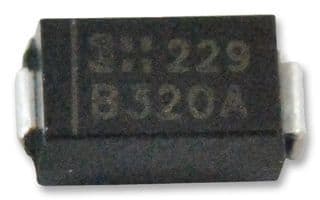

Product Images
