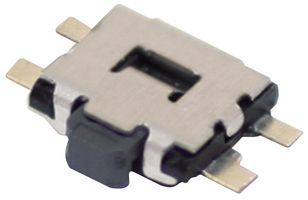

Surface mount tactile switch featuring a SPST-NO (Single Pole Single Throw - Normally Open) configuration. This non-illuminated component offers a 50mA current rating and a 12V DC voltage rating. It boasts a 2.2N operating force, 0.2mm switch travel, and a compact 2.9mm size with a 0.6mm black actuator. Designed for surface mounting with gull wing termination, it provides 100,000 cycles of electrical and mechanical life.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVP-ANDA1A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EVP-ANDA1A technical specifications.
| Actuator Color | Black |
| Actuator Length | 0.6mm |
| Package/Case | SMD/SMT |
| Color | Black |
| Current Rating | 50mA |
| Electrical Life | 100000Cycles |
| Height | 0.7mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 12V |
| Mount | Surface Mount |
| Operating Force | 2.2N |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | EVPAN |
| Size | 2.9mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
| RoHS | Compliant |
