SPST-NO tactile switch with a 20mA contact current rating and 15V DC voltage rating. Features a standard black actuator with a 3.1mm length and 0.25mm switch travel. Rated for 50,000 electrical and mechanical cycles, operating between -20°C and 70°C. Through-hole mount with PC pin termination, available in tape and reel packaging. RoHS compliant.
PackageRadial
Current Rating20mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EVQ-11U07K technical specifications.
General
| Actuator Color | Black |
| Actuator Length | 3.1mm |
| Actuator Type | Standard |
| Package/Case | Radial |
| Contact Current Rating | 20mA |
| Current Rating | 20mA |
| Electrical Life | 50000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 50000Cycles |
| Mount | Through Hole |
| Operating Force | 2.6N |
| Orientation | Straight |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | EVQ11 |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 15V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVQ-11U07K Datasheet
Download the complete datasheet for Panasonic EVQ-11U07K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

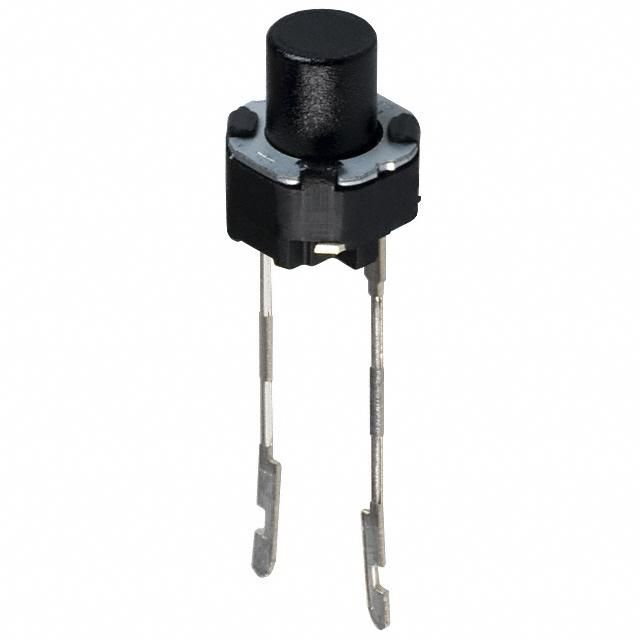

Product Images
