SPST tactile switch featuring a 1.3N operating force and 0.25mm travel. This through-hole component offers a 20mA contact current rating at 15VDC, with a mechanical and electrical life of 100,000 cycles. The black, standard actuator measures 3.6mm in length, and the switch is RoHS compliant. Available in a radial package quantity of 1000 on tape and reel.
PackageRadial
Storage6mm
Current Rating20mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EVQ-21407K technical specifications.
General
| Actuator Color | Black |
| Actuator Length | 3.6mm |
| Actuator Type | Standard |
| Package/Case | Radial |
| Contact Current Rating | 20mA |
| Contact Plating | Silver |
| Current Rating | 20mA |
| Depth | 6.3mm |
| Electrical Life | 100000Cycles |
| Height | 7mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Current Rating | 20mA |
| Max Operating Temperature | 70°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 15V |
| Mount | Through Hole |
| Operating Force | 1.3N |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | EVQ2 |
| Size | 6mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 15V |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVQ-21407K Datasheet
Download the complete datasheet for Panasonic EVQ-21407K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

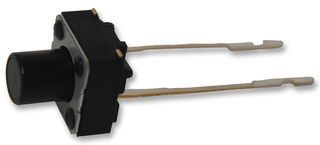

Product Images
