SPST-NO tactile switch with a 20mA contact current rating and 15V DC voltage rating. Features a standard red actuator with 1.6mm length and 0.25mm switch travel. Through-hole mount with PC pin termination, operating force of 1.6N, and electrical/mechanical life of 100,000 cycles. Non-illuminated and illuminated options available, with a 6mm x 6mm x 5mm radial package. RoHS compliant and lead-free.
PackageRadial
Storage6mm
Current Rating20mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EVQ-21505R technical specifications.
General
| Actuator Color | Red |
| Actuator Length | 1.6mm |
| Actuator Type | Standard |
| Package/Case | Radial |
| Contact Current Rating | 20mA |
| Contact Plating | Silver |
| Current Rating | 20mA |
| Depth | 6mm |
| Electrical Life | 100000Cycles |
| Height | 5mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Current Rating | 20mA |
| Max Operating Temperature | 70°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 15V |
| Mount | Through Hole |
| Operating Force | 1.6N |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | EVQ2 |
| Size | 6mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 15V |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVQ-21505R Datasheet
Download the complete datasheet for Panasonic EVQ-21505R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

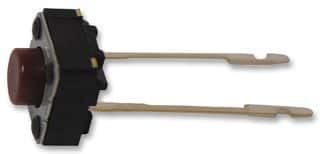

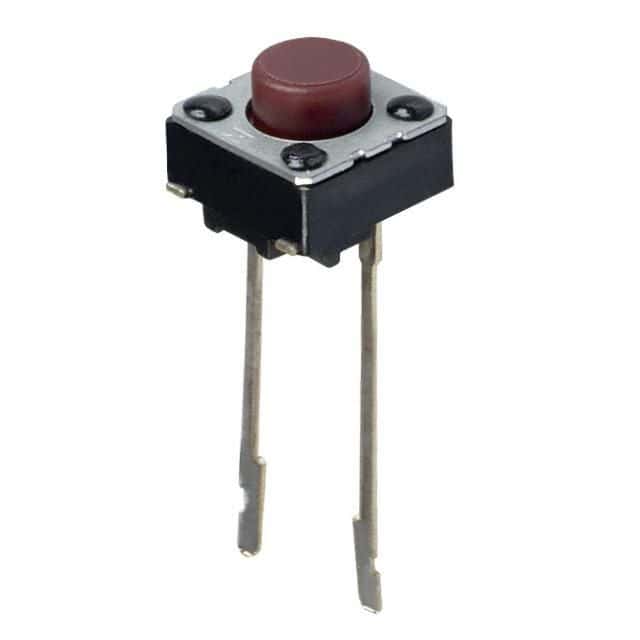

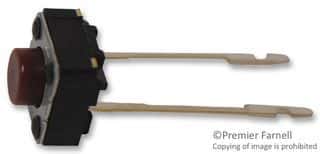

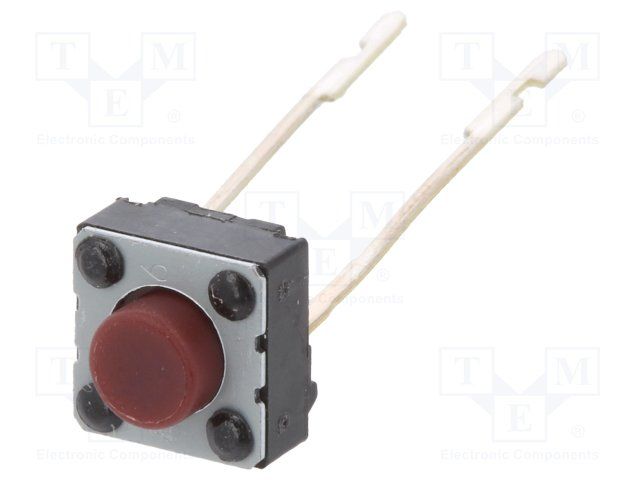

Product Images
