Tactile switch, SPST-NO, 20mA, 15VDC. Features a 6mm size, through-hole mount, and PC pin termination. Offers a 2.6N operating force and 0.25mm switch travel. Rated for 20mA contact current and 15VDC maximum voltage. Electrical and mechanical life expectancy of 50,000 cycles. Operates within a temperature range of -20°C to 70°C.
PackageRadial
Storage6mm
Current Rating20mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EVQ-22705R technical specifications.
General
Actuator Color
Red
Actuator Length
1.6mm
Actuator Type
Standard
Package/Case
Radial
Contact Current Rating
20mA
Current Rating
20mA
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Max Voltage Rating (DC)
15V
Mechanical Life
50000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Force
2.6N
Orientation
Straight
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
EVQ2
Size
6mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
15V
Compliance
RoHS
Compliant
Datasheet
Panasonic EVQ-22705R Datasheet
Download the complete datasheet for Panasonic EVQ-22705R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

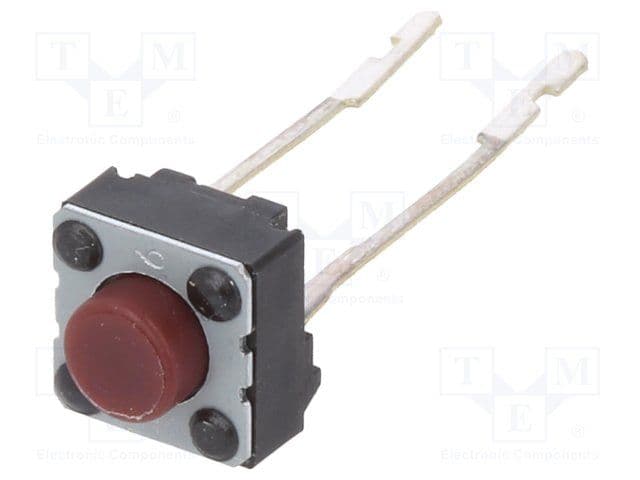

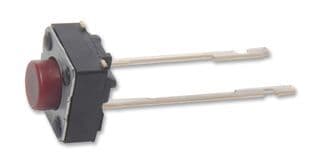

Product Images
