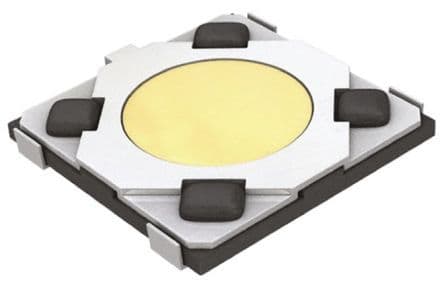

SPST tactile switch featuring a flush, round button actuator with a 1.6N operating force and 0.2mm travel. This non-illuminated, surface-mount component offers a 20mA current rating and 15VDC voltage rating, with silver-plated contacts and an electrical and mechanical life of 1 million cycles. Designed for straight orientation and tape and reel packaging, it operates within a -20°C to 70°C temperature range and boasts IP68 dustproof ratings.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVQ-6P6B40 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EVQ-6P6B40 technical specifications.
| Actuator Length | 0mm |
| Contact Current Rating | 20mA |
| Contact Plating | Silver |
| Current Rating | 20mA |
| Depth | 4.3mm |
| Electrical Life | 1000000Cycles |
| Height | 0.43mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 4.1mm |
| Max Current Rating | 20mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 1000000Cycles |
| Mount | Surface Mount |
| Number of Positions | 2 |
| Operating Force | 1.6N |
| Orientation | Straight |
| Package Quantity | 1 |

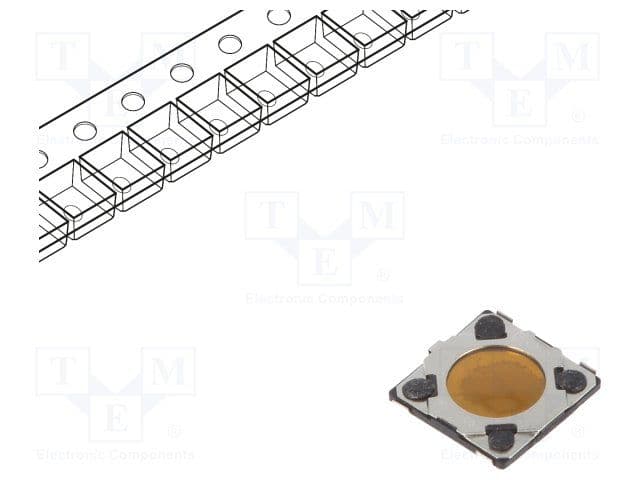

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | IP68, Dust Proof |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EVQ6P6 |
| Size | 4mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2mm |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| DC Rated Voltage | 15V |
| Width | 4.1mm |
| RoHS | Compliant |
