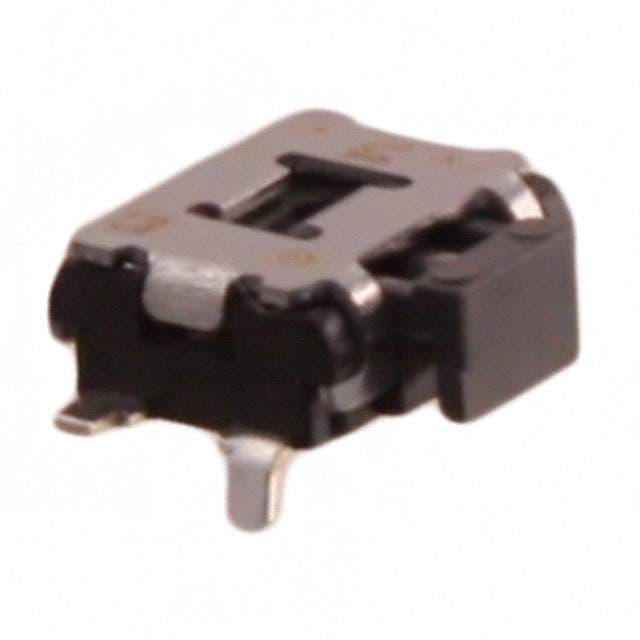

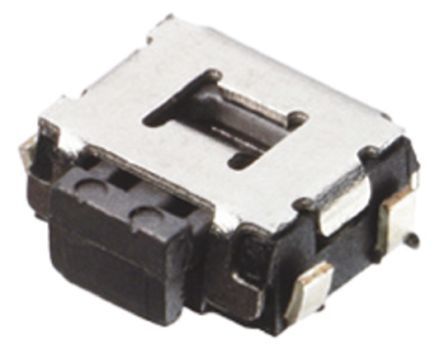

Surface mount tactile switch featuring a black actuator with 0.65mm length and 2.9mm size. This SPST-NO (Single Pole Single Throw - Normally Open) switch offers a 50mA contact current rating at a 12V DC voltage rating. It provides a 1.6N operating force and 0.2mm travel, with a mechanical life of 100,000 cycles. The switch is RoHS compliant, non-illuminated, and designed for right-angle mounting with gull wing termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVQ-9P701K datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EVQ-9P701K technical specifications.
| Actuator Color | Black |
| Actuator Length | 0.65mm |
| Package/Case | SMD/SMT |
| Contact Current Rating | 50mA |
| Current Rating | 50mA |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 12V |
| Mount | Surface Mount |
| Operating Force | 1.6N |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EVQ9P7 |
| Size | 2.9mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
| RoHS | Compliant |
