Tactile switch, SPST-NO, 0.05A, 30V DC. Features a 0.74N operating force and 0.5mm switch travel. Non-illuminated and illuminated options available. Through-hole mount with PC pin termination. Electrical and mechanical life rated at 5 million cycles. Operating temperature range of -20°C to 70°C.
Storage6.2mm
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EVQ-P0E07K technical specifications.
General
Actuator Color
Black
Actuator Length
0.45mm
Actuator Type
Standard
Color
Black
Contact Current Rating
50mA
Contact Plating
Silver
Current Rating
50mA
Depth
6.2mm
Electrical Life
5000000Cycles
Height
7.45mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
6.2mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Mechanical Life
5000000Cycles
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
30V
Mount
Through Hole
Number of Positions
2
Operating Force
0.74N
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
EVQP0
Size
6.2mm
Switch Function
Off-Mom
Switch Travel
0.5mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
30V
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EVQ-P0E07K Datasheet
Download the complete datasheet for Panasonic EVQ-P0E07K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

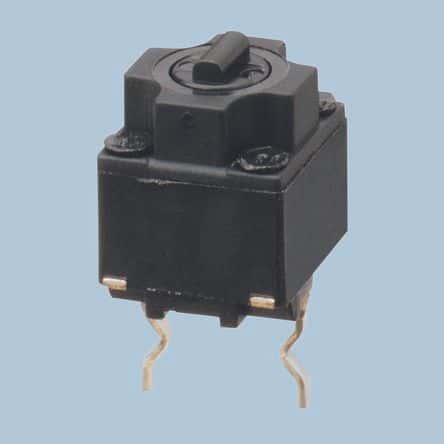

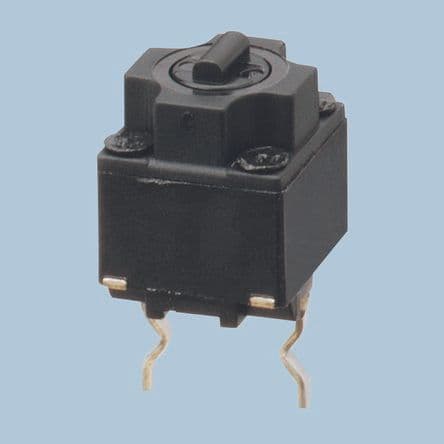

Product Images
