SPST tactile switch featuring a J-bend termination for SMD mounting. This non-illuminated, surface-mount component offers a 1.6N operating force and 1.3mm travel. Rated for 0.05A and 12VDC, it boasts a mechanical and electrical life of 100,000 cycles. Operating within a -40°C to 85°C temperature range, it is supplied on tape and reel in a 2000-piece package.
PackageSMD/SMT
Storage6.1mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EVQ-P1905M technical specifications.
General
| Actuator Color | Natural |
| Actuator Length | 1.5mm |
| Actuator Type | Standard |
| Package/Case | SMD/SMT |
| Current Rating | 50mA |
| Electrical Life | 100000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 100000Cycles |
| Mount | Surface Mount |
| Operating Force | 1.6N |
| Orientation | Straight |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EVQP1 |
| Size | 6.1mm |
| Switch Function | Off-Mom |
| Switch Travel | 1.3mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVQ-P1905M Datasheet
Download the complete datasheet for Panasonic EVQ-P1905M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

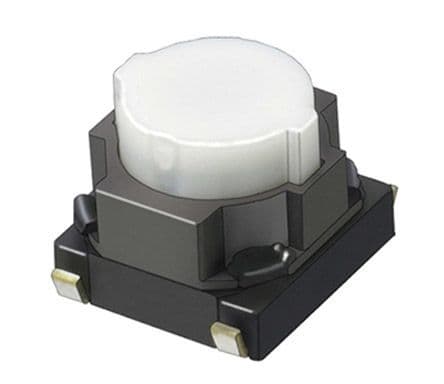

Product Images
