Surface mount tactile switch featuring a 3.5mm size and SPST-NO throw configuration. Offers a 20mA contact current rating at 15V DC, with a 2.5N operating force and 0.7mm switch travel. Designed for a mechanical and electrical life of 1 million cycles, this non-illuminated switch operates within a -40°C to 85°C temperature range. Packaged on tape and reel, it includes a standard blue actuator with a 0.85mm length.
Storage3.5mm
Current Rating20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EVQ-P2H02B technical specifications.
General
| Actuator Color | Blue |
| Actuator Length | 0.85mm |
| Actuator Type | Standard |
| Contact Current Rating | 20mA |
| Current Rating | 20mA |
| Depth | 5.5mm |
| Electrical Life | 1000000Cycles |
| Height | 2.5mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 3.5mm |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Force | 2.5N |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EVQP2 |
| Size | 3.5mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.7mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| DC Rated Voltage | 15V |
| Width | 4.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVQ-P2H02B Datasheet
Download the complete datasheet for Panasonic EVQ-P2H02B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

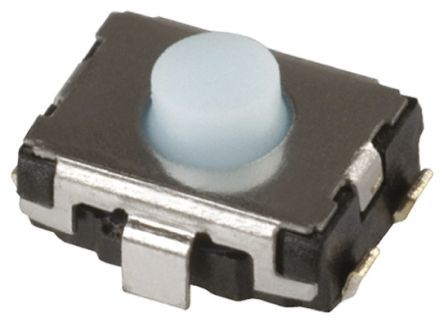

Product Images
