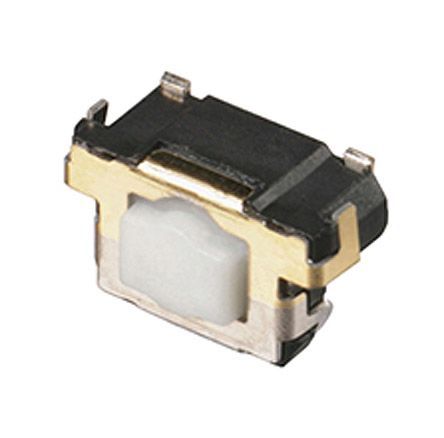

SPST-NO tactile switch, surface mount, right-angle orientation. Features a 1N operating force, 0.25mm travel, and 20mA current rating at 15V DC. Offers 1,000,000 cycles electrical and mechanical life. Operates within a -40°C to 85°C temperature range. Packaged on tape and reel, RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVQ-P40B3M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EVQ-P40B3M technical specifications.
| Actuator Color | Natural |
| Package/Case | SMD/SMT |
| Current Rating | 20mA |
| Depth | 3mm |
| Electrical Life | 1000000Cycles |
| Illumination Type | Non-Illuminated |
| Length | 6.2mm |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 1000000Cycles |
| Mount | Edge, Surface Mount |
| Operating Force | 1N |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | EVQP4 |
| Size | 3.5mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 15V |
| RoHS | Compliant |
