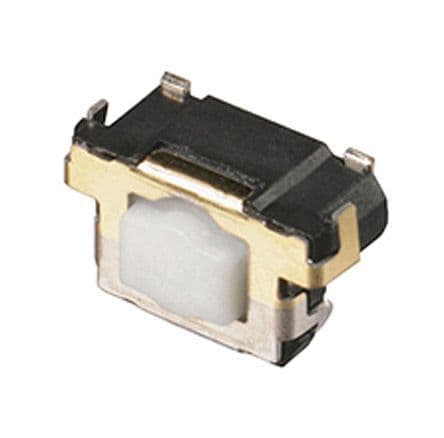

SPST-NO tactile switch, SMD/SMT mount with J-Bend termination. Features a 15V DC voltage rating, 20mA current rating, and 0.25mm travel. Offers a 1.6N operating force and a mechanical/electrical life of 1 million cycles. Non-illuminated with a right-angle orientation, measuring 6.2mm in length and 3mm in depth. Operates within a -40°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVQ-P42B3M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EVQ-P42B3M technical specifications.
| Actuator Color | Natural |
| Package/Case | SMD/SMT |
| Current Rating | 20mA |
| Depth | 3mm |
| Electrical Life | 1000000Cycles |
| Illumination Type | Non-Illuminated |
| Length | 6.2mm |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 1000000Cycles |
| Mount | Edge, Surface Mount |
| Operating Force | 1.6N |
| Orientation | Right Angle |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | EVQP4 |
| Size | 3.5mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 15V |
| RoHS | Compliant |
