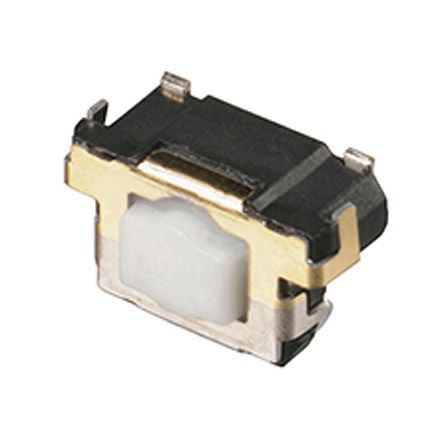

SMD tactile switch featuring a 3.5mm size and right-angle orientation. This SPST-NO switch offers a 20mA current rating at 15V DC and a 250V AC voltage rating. It boasts a 3.5N operating force, 0.25mm travel, and a robust mechanical and electrical life of 200,000 cycles. Packaged in tape and reel, this non-illuminated, natural actuator component is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVQ-P46B3M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EVQ-P46B3M technical specifications.
| Actuator Color | Natural |
| Package/Case | SMD/SMT |
| Current Rating | 20mA |
| Depth | 3mm |
| Electrical Life | 200000Cycles |
| Illumination Type | Non-Illuminated |
| Length | 6.2mm |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 200000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 15V |
| Mount | Edge, Surface Mount |
| Operating Force | 3.5N |
| Orientation | Right Angle |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | EVQP4 |
| Size | 3.5mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 15V |
| RoHS | Compliant |
