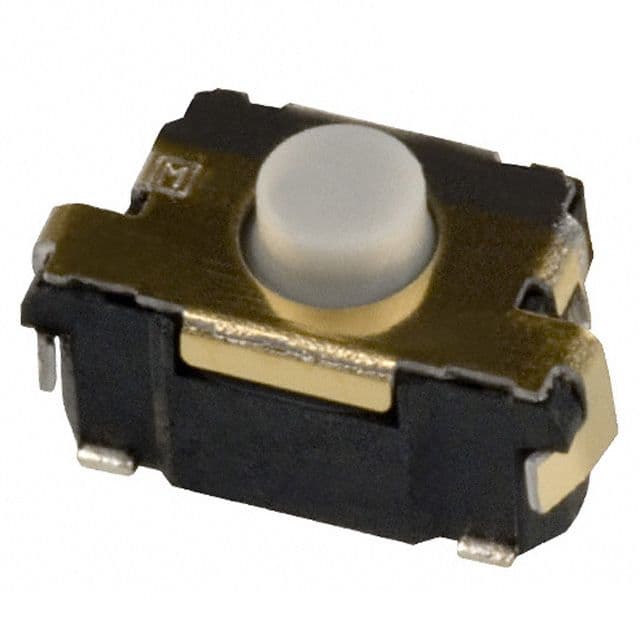

This Panasonic SMD tactile switch features a standard actuator type with a maximum operating temperature of 85°C and a maximum voltage rating of 15V DC. It has a contact current rating of 20mA and is designed for edge, surface mount applications. The switch is lead free and RoHS compliant, with a mechanical life of 500,000 cycles. It has a right angle orientation and a switch travel of 0.7mm, with a throw configuration of SPST.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVQ-P8K03Q datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EVQ-P8K03Q technical specifications.
| Actuator Type | Standard |
| Package/Case | SMD/SMT |
| Contact Current Rating | 20mA |
| Current Rating | 20mA |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 500000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Edge, Surface Mount |
| Operating Force | 350gf |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | EVQP8 |
| Switch Function | Off-Mom |
| Switch Travel | 0.7mm |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| DC Rated Voltage | 15V |
| RoHS | Compliant |
