Tactile switch, SPST-NO, 0.02A 15V DC rated voltage. Features a 6mm x 6mm footprint with a 9.5mm height and 6.1mm black standard actuator. Offers 100,000 cycles of electrical and mechanical life, with silver contact plating and a 0.25mm switch travel. Through-hole mount with PC pin termination, operating force of 1.3N, and a temperature range of -20°C to 70°C. RoHS compliant and non-illuminated.
Storage6mm
Current Rating20mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EVQ-PAD09K technical specifications.
General
| Actuator Color | Black |
| Actuator Length | 6.1mm |
| Actuator Type | Standard |
| Color | Black |
| Contact Current Rating | 20mA |
| Contact Plating | Silver |
| Current Rating | 20mA |
| Electrical Life | 100000Cycles |
| Height | 9.5mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 100000Cycles |
| Mount | Through Hole |
| Operating Force | 1.3N |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | EVQPA |
| Size | 6mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 15V |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVQ-PAD09K Datasheet
Download the complete datasheet for Panasonic EVQ-PAD09K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

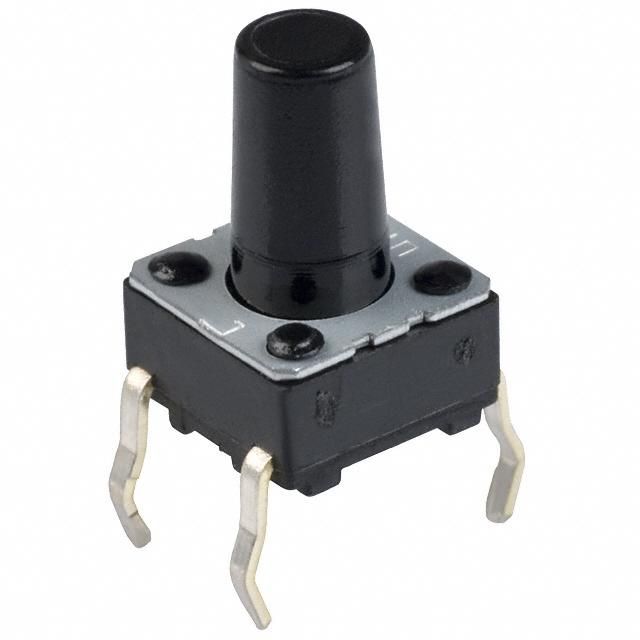

Product Images
