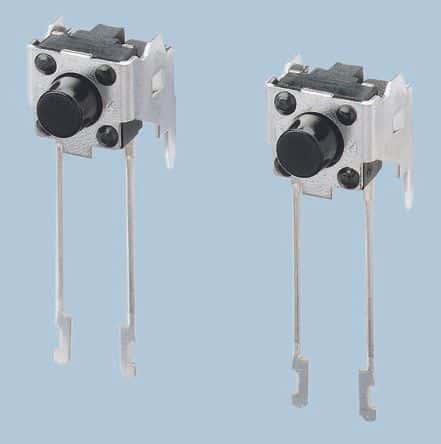

SPST tactile switch with a right-angle, through-hole mount and PC pin termination. Features a 1.3N operating force, 0.25mm switch travel, and a 20mA contact current rating at 15V DC. Offers a mechanical and electrical life of 100,000 cycles, operating between -20°C and 70°C. Available in non-illuminated and illuminated options, with a black standard actuator measuring 2.3mm. Packaged in tape and reel with 700 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVQ-PC105K datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EVQ-PC105K technical specifications.
| Actuator Color | Black |
| Actuator Length | 2.3mm |
| Actuator Type | Standard |
| Package/Case | Radial |
| Contact Current Rating | 20mA |
| Current Rating | 20mA |
| Electrical Life | 100000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 15V |
| Mount | Through Hole |
| Number of Positions | 2 |
| Operating Force | 1.3N |
| Orientation | Right Angle |
| Package Quantity | 700 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EVQPC |
| Size | 7.1mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 15V |
| RoHS | Compliant |
