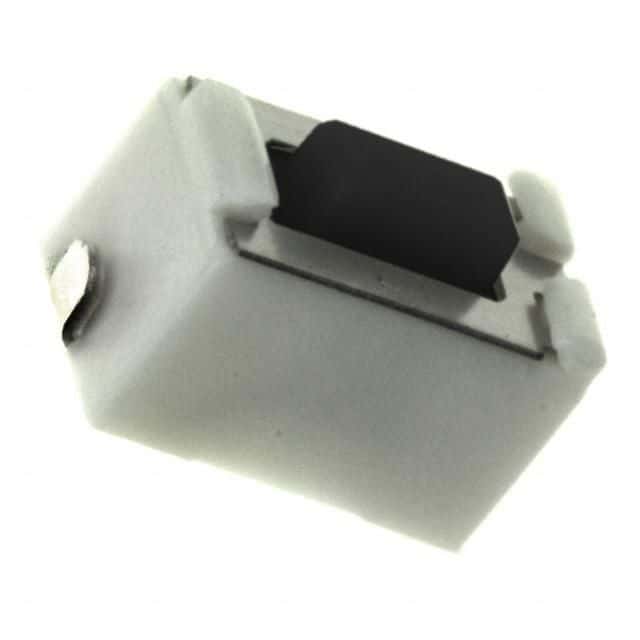

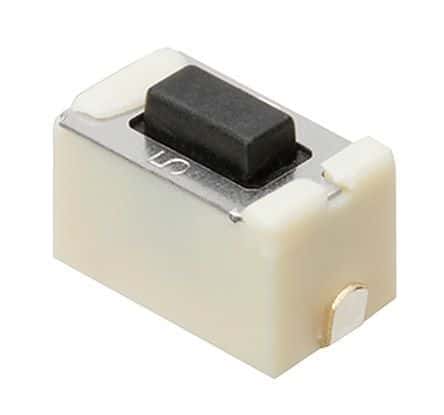

SPST-NO tactile switch, surface mount, featuring a 0.8mm black standard actuator. Rated for 50mA at 12V DC, this non-illuminated component offers 50,000 cycles of electrical and mechanical life. With a 1N operating force and 0.25mm travel, it measures 3.5mm (L) x 6mm (W) x 4.3mm (H) and operates between -30°C and 85°C. Gull wing termination and tape and reel packaging ensure efficient assembly.
Storage3.5mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EVQ-PE104K technical specifications.
General
Actuator Color
Black
Actuator Length
0.8mm
Actuator Type
Standard
Contact Current Rating
50mA
Current Rating
50mA
Depth
7.2mm
Electrical Life
50000Cycles
Height
4.3mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
3.5mm
Max Current Rating
50mA
Max Operating Temperature
85°C
Mechanical Life
50000Cycles
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
12V
Mount
Surface Mount
Operating Force
1N
Orientation
Straight
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
EVQPE
Size
3.5mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EVQ-PE104K Datasheet
Download the complete datasheet for Panasonic EVQ-PE104K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
