SPST-NO tactile switch with a 20mA contact current rating and 15V DC voltage rating. Features a standard black actuator with an 8.35mm length, a 1N operating force, and 0.25mm switch travel. This through-hole mounted component offers a mechanical and electrical life of 100,000 cycles and operates within a -20°C to 70°C temperature range. It is RoHS compliant and available in bulk packaging.
Current Rating20mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EVQ-PF008K technical specifications.
General
Actuator Color
Black
Actuator Length
8.35mm
Actuator Type
Standard
Color
Black
Contact Current Rating
20mA
Current Rating
20mA
Depth
12.35mm
Electrical Life
100000Cycles
Height
7.1mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
7.5mm
Max Current Rating
20mA
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
15V
Mechanical Life
100000Cycles
Mount
Through Hole
Operating Force
1N
Orientation
Right Angle
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EVQPF
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
15V
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EVQ-PF008K Datasheet
Download the complete datasheet for Panasonic EVQ-PF008K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

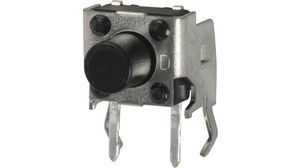

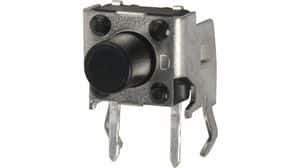

Product Images
