SPST-NO tactile switch with a 20mA contact current rating and 15V DC voltage rating. Features a standard black actuator with an 8.35mm length, a 0.25mm switch travel, and a 1.6N operating force. This through-hole mount component offers 100,000 cycles of electrical and mechanical life, operating between -20°C and 70°C. It is RoHS compliant and available in bulk packaging.
Storage7.1mm
Current Rating20mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EVQ-PF208K technical specifications.
General
Actuator Color
Black
Actuator Length
8.35mm
Actuator Type
Standard
Color
Black
Contact Current Rating
20mA
Current Rating
20mA
Depth
12.35mm
Electrical Life
100000Cycles
Height
7.1mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
6.2mm
Max Current Rating
20mA
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
15V
Mount
Through Hole
Operating Force
1.6N
Orientation
Right Angle
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
EVQPF
Size
7.1mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
15V
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EVQ-PF208K Datasheet
Download the complete datasheet for Panasonic EVQ-PF208K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

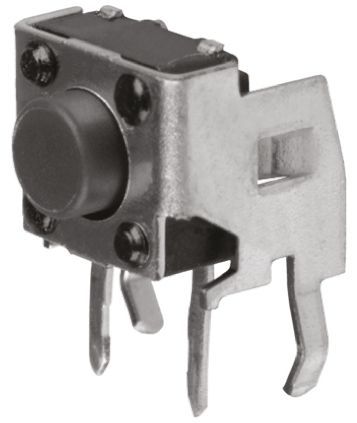

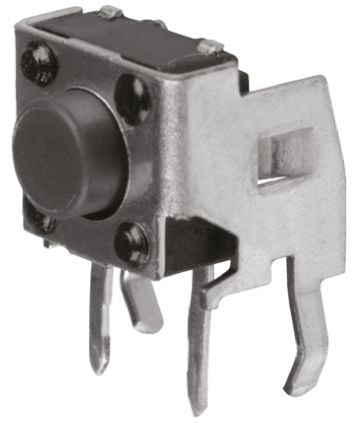

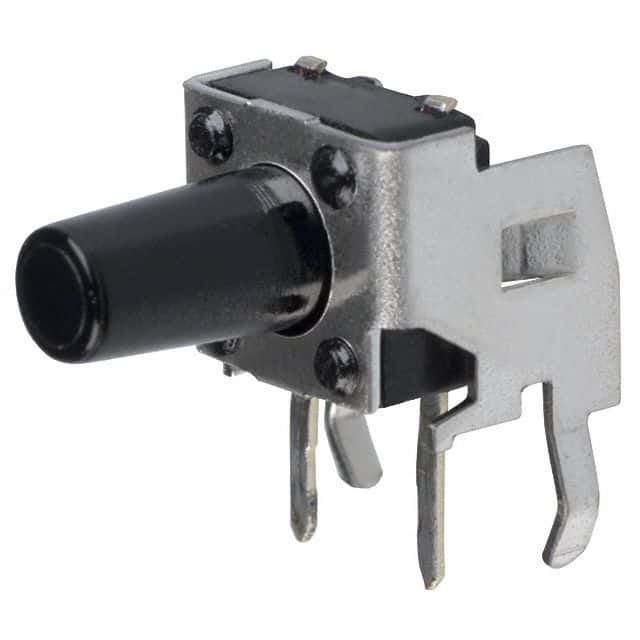

Product Images
