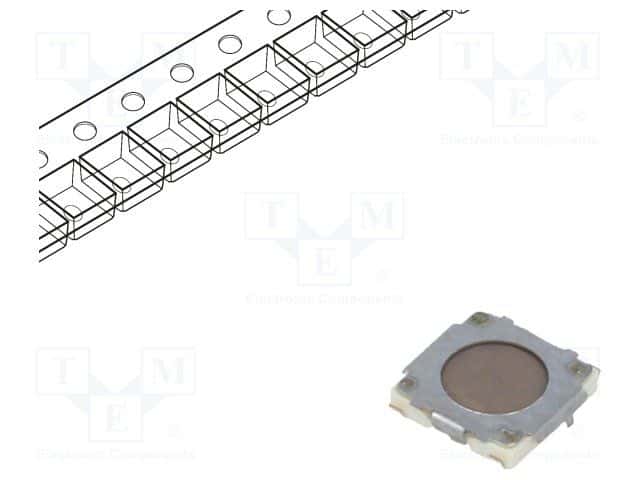

SMD tactile switch featuring a flush, round button with a J-bend termination for surface mounting. This SPST (Single Pole Single Throw) switch offers a 0.02A (20mA) current rating at 15VDC, with a 1N operating force and 0.25mm travel. It boasts a mechanical and electrical life of 500,000 cycles and is RoHS compliant. Operating temperature range is -20°C to 70°C, with IP68 ratings.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVQ-PLBA08 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EVQ-PLBA08 technical specifications.
| Actuator Length | 0mm |
| Actuator Type | Standard |
| Contact Current Rating | 20mA |
| Contact Plating | Silver |
| Current Rating | 20mA |
| Depth | 4.9mm |
| Electrical Life | 500000Cycles |
| Height | 0.8mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Current Rating | 20mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 500000Cycles |
| Mount | Surface Mount |
| Operating Force | 1N |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | IP68 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EVQPL |
| Size | 4.9mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| DC Rated Voltage | 15V |
| Width | 4.9mm |
| RoHS | Compliant |
