Surface mount tactile switch, EVQPL series, featuring a top-actuated, round button design. This SPST switch offers a 1N operating force and 0.25mm travel, with a 20mA contact current rating at 15VDC. It boasts a mechanical and electrical life of 500,000 cycles, silver contact plating, and IP68 ratings. The component operates within a temperature range of -20°C to 70°C and is supplied on tape and reel.
Voltage Rating15V
Current Rating20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EVQ-PLDA15 technical specifications.
General
| Actuator Length | 0.3mm |
| Actuator Type | Standard |
| Contact Current Rating | 20mA |
| Contact Plating | Silver |
| Current Rating | 20mA |
| Depth | 4.9mm |
| Electrical Life | 500000Cycles |
| Height | 1.5mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Current Rating | 20mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 500000Cycles |
| Mount | Surface Mount |
| Number of Positions | 2 |
| Operating Force | 1N |
| Orientation | Straight |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | IP68 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EVQPL |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| Voltage Rating | 15V |
| DC Rated Voltage | 15V |
| Width | 4.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVQ-PLDA15 Datasheet
Download the complete datasheet for Panasonic EVQ-PLDA15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

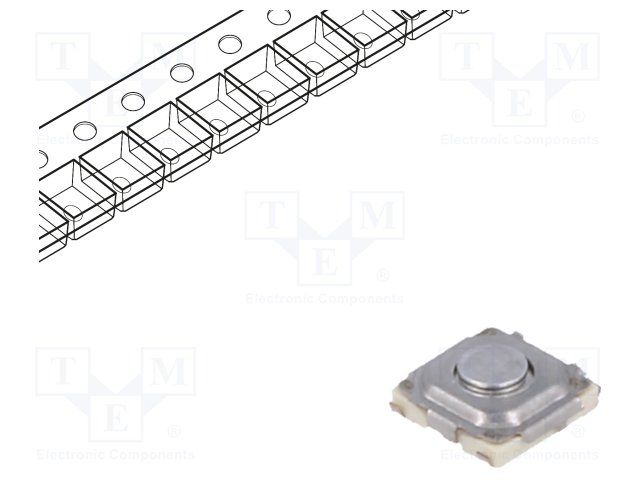

Product Images
