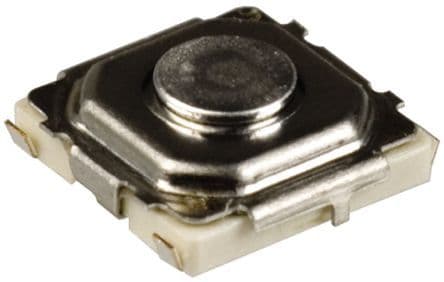

Surface mount tactile switch featuring a 2.6N operating force and 0.25mm travel. This SPST-NO switch offers a 15V DC voltage rating and a 20mA current rating with gold/silver contact plating. Designed for 200,000 electrical and mechanical cycles, it operates within a -20°C to 70°C temperature range. Available in tape and reel packaging, this non-illuminated or illuminated component is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVQ-PLMA15 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EVQ-PLMA15 technical specifications.
| Actuator Length | 0.3mm |
| Actuator Type | Standard |
| Contact Current Rating | 20mA |
| Contact Plating | Gold, Silver |
| Current Rating | 20mA |
| Depth | 4.9mm |
| Electrical Life | 200000Cycles |
| Height | 1.5mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Current Rating | 20mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 200000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Positions | 2 |
| Operating Force | 2.6N |
| Orientation | Straight |
| Package Quantity | 5000 |

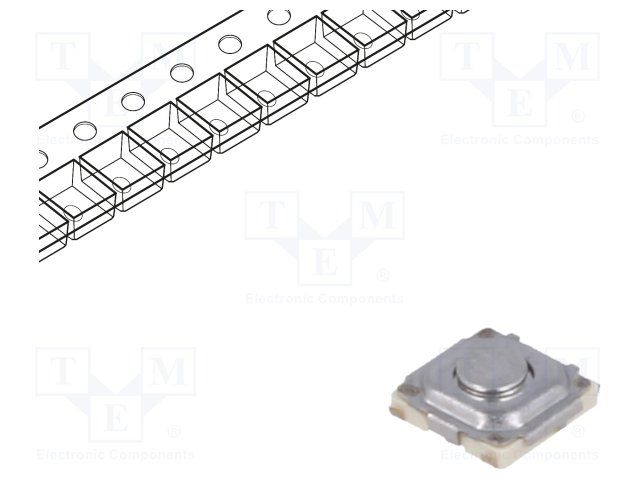

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | EVQPL |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| Voltage Rating | 15V |
| DC Rated Voltage | 15V |
| Width | 4.9mm |
| RoHS | Compliant |
