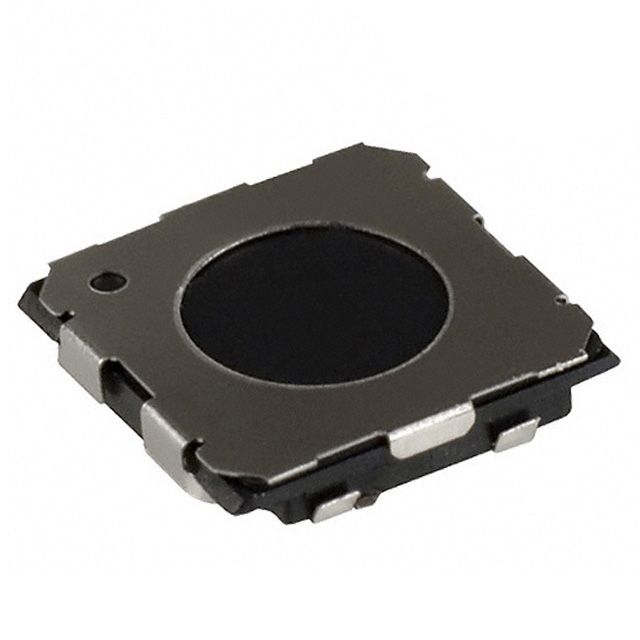

SPDT tactile switch, surface mount, 6mm size, featuring a 20mA contact current rating and a 15V DC voltage rating. This non-illuminated switch offers a 2.6N operating force and 0.6mm switch travel. With an electrical and mechanical life of 30,000 cycles, it operates within a temperature range of -20°C to 70°C. The switch is RoHS compliant and lead-free, packaged in tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVQ-PRHA09 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EVQ-PRHA09 technical specifications.
| Actuator Length | 0mm |
| Contact Current Rating | 20mA |
| Contact Plating | Silver |
| Current Rating | 20mA |
| Electrical Life | 30000Cycles |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Mechanical Life | 30000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 15V |
| Mount | Surface Mount |
| Operating Force | 2.6N |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | EVQPR |
| Size | 6mm |
| Switch Function | Off-Mom-Mom |
| Switch Travel | 0.6mm |
| Termination | SMD/SMT |
| Throw Configuration | SPDT |
| DC Rated Voltage | 15V |
| RoHS | Compliant |
