Tactile Switch, SPST-NO, 50mA, 12V DC. Features a 6mm x 6mm x 5mm through-hole package with a black standard actuator measuring 1.5mm. Offers silver contact plating, 100,000 cycles electrical and mechanical life, and an operating force of 2.2N. Operates within a temperature range of -30°C to 85°C. RoHS compliant.
PackageRadial
Storage6mm
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EVQ-PVA05K technical specifications.
General
Actuator Color
Black
Actuator Length
1.5mm
Actuator Type
Standard
Package/Case
Radial
Color
Black
Contact Current Rating
50mA
Contact Plating
Silver
Current Rating
50mA
Depth
6.1mm
Electrical Life
100000Cycles
Height
5mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
6mm
Max Current Rating
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
12V
Mechanical Life
100000Cycles
Mount
Through Hole
Number of Positions
2
Operating Force
2.2N
Orientation
Straight
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EVQPV
Size
6mm
Switch Function
Off-Mom
Switch Travel
1mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
12V
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EVQ-PVA05K Datasheet
Download the complete datasheet for Panasonic EVQ-PVA05K to view detailed technical specifications.
No datasheet is available for this part.

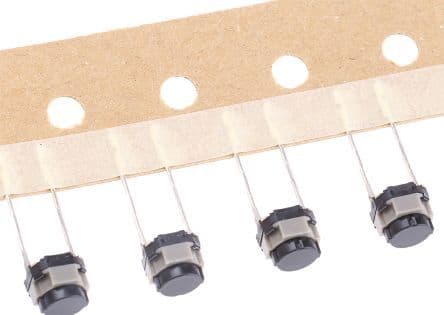

Product Images
