SPST-NO tactile switch, surface mount, with a 50mA contact current rating and 12V DC voltage rating. Features a 1.4mm black standard actuator, 1mm switch travel, and 5N operating force. Offers 100,000 cycles of electrical and mechanical life, with silver contact plating. Rated for dust proof and IP68 protection, operating between -40°C and 85°C. RoHS compliant and available on tape and reel.
Storage6.5mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EVQ-Q1E06K technical specifications.
General
| Actuator Color | Black |
| Actuator Length | 1.4mm |
| Actuator Type | Standard |
| Contact Current Rating | 50mA |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Electrical Life | 100000Cycles |
| Height | 6.5mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 8.5mm |
| Max Operating Temperature | 85°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 12V |
| Mount | Surface Mount |
| Number of Positions | 2 |
| Operating Force | 5N |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | Dust Proof, IP68 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | EVQQ1 |
| Size | 6.5mm |
| Switch Function | Off-Mom |
| Switch Travel | 1mm |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
| Width | 8.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVQ-Q1E06K Datasheet
Download the complete datasheet for Panasonic EVQ-Q1E06K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

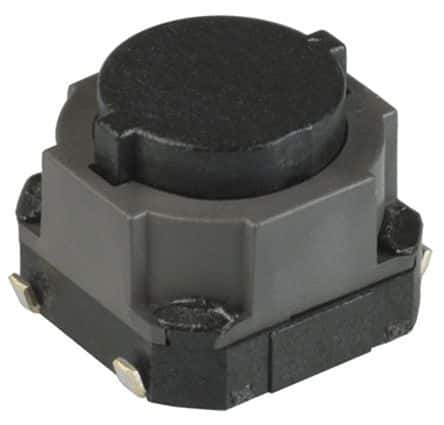

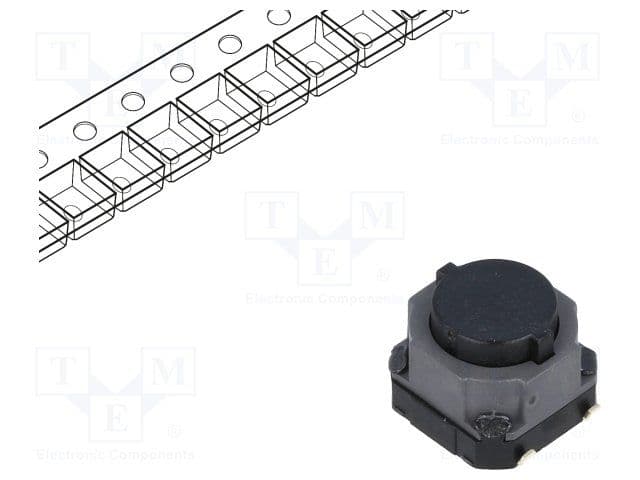

Product Images
