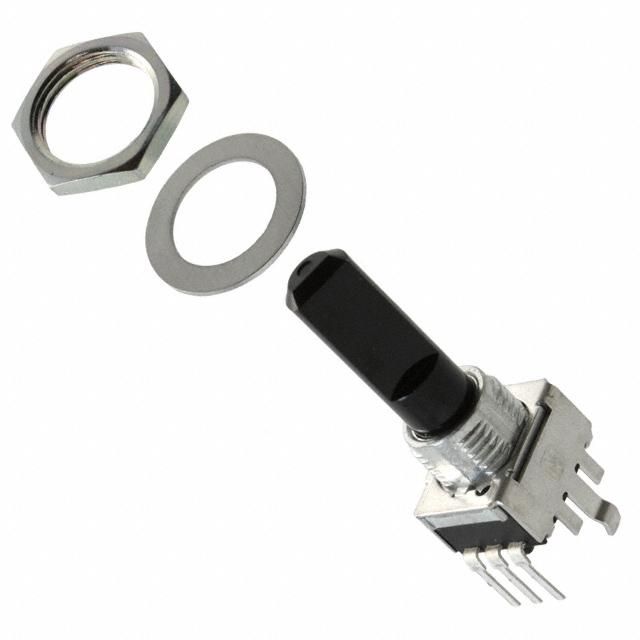

10k Ohm linear taper potentiometer with 20% resistance tolerance. Features a 250V DC rated voltage and 50mW maximum power dissipation. Panel mount design with a metal package, 12.5mm height, 8.5mm length, and 9.7mm width. Includes a 0.236-inch diameter actuator extending 0.846 inches. Single gang, single turn with pin termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVU-F2MFL3B14 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Diameter | 0.236inch |
| Actuator Length | 0.846inch |
| Package/Case | Metal |
| Height | 12.5mm |
| Lead Free | Lead Free |
| Length | 8.5mm |
| Max Power Dissipation | 50mW |
| Mount | Panel, Brackets |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| Series | EVU |
| Taper | Linear |
| Termination | Pin |
| Tolerance | 20% |
| Type | Potentiometer |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Width | 9.7mm |
| RoHS | Compliant |
