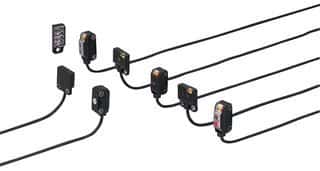

Retroreflective photoelectric sensor with NPN open collector output, capable of sensing up to 200mm. Features a 50mA output current and a fast 500µs response time. Operates within a 12V to 24V DC supply voltage range and maintains functionality from -25°C to 55°C. Rated IP67 for robust environmental protection, this sensor utilizes screw mounting and cable termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EX-29A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Lead Free | Lead Free |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Mount | Screw |
| Output Configuration | NPN - Open Collector |
| Output Current | 50mA |
| Output Type | NPN |
| Ratings | IP67 |
| Response Time | 500us |
| RoHS Compliant | No |
| Sensing Distance | 200mm |
| Series | EX-20 |
| Termination | Cable |
| RoHS | Not Compliant |
Download the complete datasheet for Panasonic EX-29A to view detailed technical specifications.
