Through beam photoelectric sensor featuring NPN open collector output with a 50mA current capability. Operating temperature range spans from -25°C to 55°C, with IP67 environmental protection. Offers a rapid 500µs response time and utilizes through-hole mounting with cable termination.
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EX-31B technical specifications.
General
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Mount
Through Hole
Output Configuration
NPN - Open Collector
Output Current
50mA
Ratings
IP67
Response Time
500us
RoHS Compliant
No
Series
EX-30
Termination
Cable
Compliance
RoHS
Not Compliant
Datasheet
Panasonic EX-31B Datasheet
Download the complete datasheet for Panasonic EX-31B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

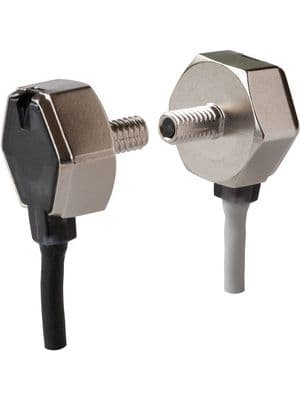

Product Images
