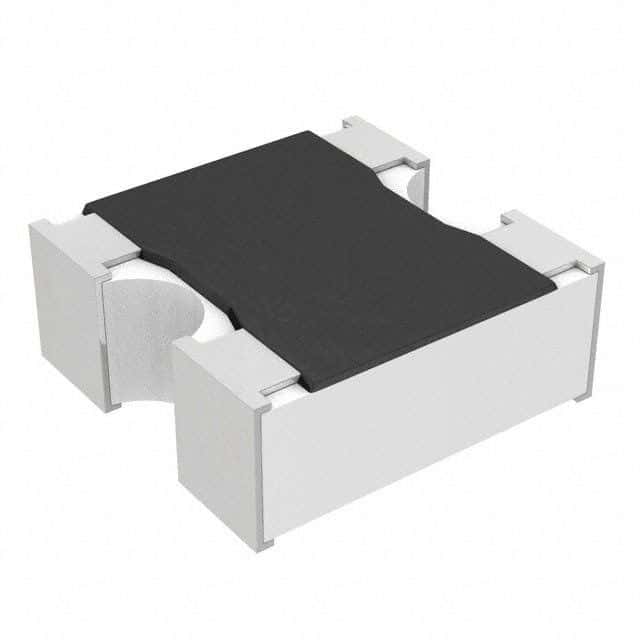

Panasonic EXB-24AT6AR5X technical specifications.
| Attenuation Value | 6dB |
| Case Code (Imperial) | 0404 |
| Case Code (Metric) | 1010 |
| Package/Case | 0404 |
| Frequency | 3GHz |
| Height | 350um |
| Impedance | 50R |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Frequency | 3GHz |
| Min Frequency | 0GHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 40mW |
| Mount | Surface Mount |
| Number of Elements | 3 |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Width | 1mm |
| RoHS | Compliant |
