Surface mount resistor network featuring 15 isolated resistors, each with a 220 Ohm resistance and 5% tolerance. This bussed circuit type component is housed in a 1506 (3816 metric) case, offering 25mW power per element and a DC rated voltage of 50V. Operating across a temperature range of -55°C to 125°C, it utilizes thick film technology and has a terminal pitch of 0.5mm. The component is supplied on tape and reel, with 16 contacts and leaded termination.
Package1506
Resistance220R
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EXB-Q16P221J technical specifications.
General
| Case Code (Imperial) | 1506 |
| Case Code (Metric) | 3816 |
| Package/Case | 1506 |
| Circuit Type | Bussed |
| Height | 0.022inch |
| Lead Free | Contains Lead |
| Length | 0.15inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 16 |
| Number of Resistors | 15 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Per Element | 25mW |
| Radiation Hardening | No |
| Resistance | 220R |
| RoHS Compliant | Yes |
| Series | EXB |
| Technology | THICK FILM |
| Terminal Pitch | 0.5mm |
| Termination | SMD/SMT |
| Tolerance | 5% |
| DC Rated Voltage | 50V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EXB-Q16P221J Datasheet
Download the complete datasheet for Panasonic EXB-Q16P221J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

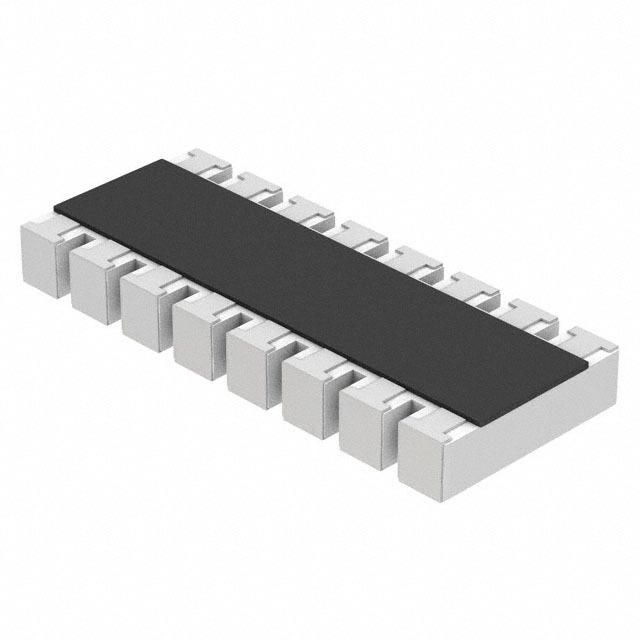

Product Images
