Surface mount ferrite bead with 1kΩ impedance at 100MHz. Features a 0603 (1608 metric) case size, ferrite core material, and a maximum current rating of 50mA. Offers a DC resistance of 1Ω maximum and operates within a temperature range of -25°C to 85°C. This lead-free, RoHS-compliant component is supplied on tape and reel.
Frequency100MHz
Package0603
Resistance1R
Current Rating50mA
Quick Jump:
Technical Specifications
Panasonic EXC-3BB102H technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Core Material | Ferrite |
| Current Rating | 50mA |
| DC Resistance-Max | 1R |
| Depth | 1mm |
| Height | 0.8mm |
| Impedance | 1kR |
| Inductor Type | FERRITE BEAD |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Current Rating | 50mA |
| Max DC Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Operating Frequency | 100MHz |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 1R |
| RoHS Compliant | Yes |
| Series | EXC3B |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EXC-3BB102H Datasheet
Download the complete datasheet for Panasonic EXC-3BB102H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

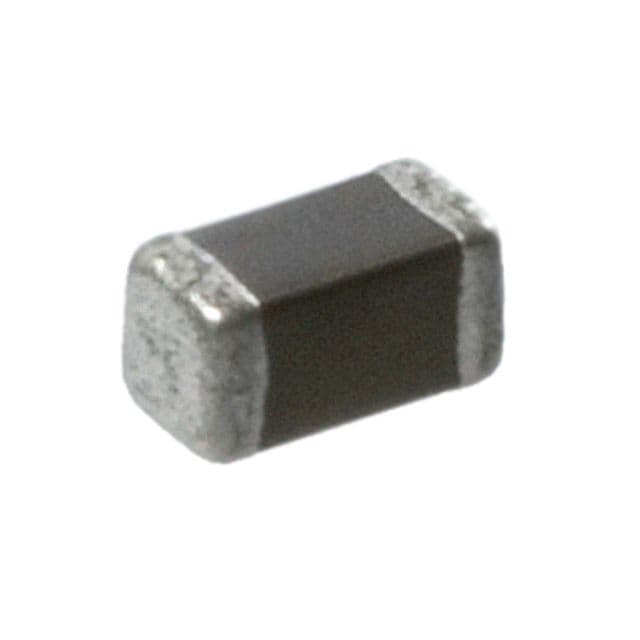

Product Images
