Surface mount RC (PI) filter with 22 Ohm resistance and 22pF capacitance per element. Features four isolated circuit channels, each with a 22 Ohm resistor and 22pF capacitor. Housed in a 1206 (3216 metric) SMD package with a flat construction. Operating temperature range from -25°C to 85°C, with a maximum voltage rating of 12V. RoHS compliant and supplied on tape and reel.
Package1206
Voltage12V
Capacitance22pF
Resistance22R
Quick Jump:
Technical Specifications
Panasonic EZA-DT11AAAJ technical specifications.
General
| Capacitance | 22pF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Circuit Type | Isolated |
| Construction | Flat |
| Depth | 1.6mm |
| ESD Protection | No |
| Height | 0.65mm |
| Length | 3.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Contacts | 10 |
| Number of Elements | 4 |
| Number of Resistors | 4 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 22R |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | EZA |
| Termination | SMD/SMT |
| Thickness | 650um |
| Tolerance | 30% |
| Voltage | 12V |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EZA-DT11AAAJ Datasheet
Download the complete datasheet for Panasonic EZA-DT11AAAJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

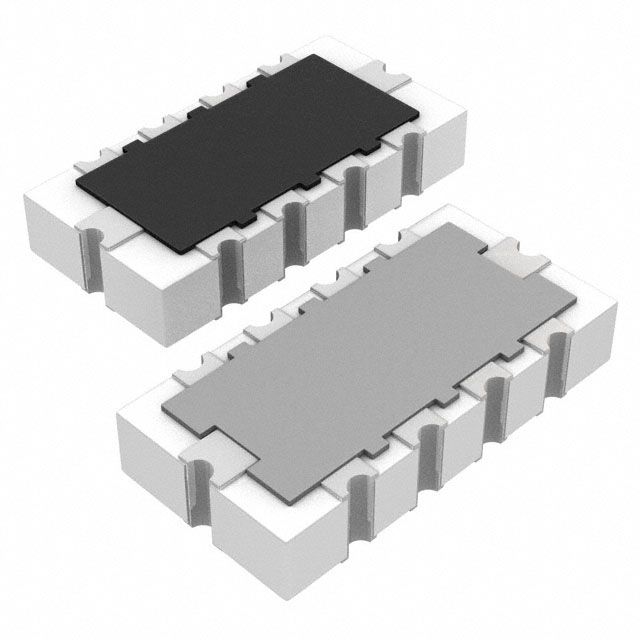

Product Images
