Surface mount EMI/RFI filter with a Pi configuration, featuring 100 Ohm resistance and 220pF capacitance per channel. This component offers 4 channels and operates within a temperature range of -25°C to 85°C. Constructed in a 2512 (6432 metric) case code with a flat profile, it measures 0.252" L x 0.122" W x 0.039" H (6.4mm x 3.1mm x 1mm). It is lead-free, RoHS compliant, and packaged on tape and reel.
Package2512
Capacitance220pF
Resistance100R
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EZA-NT34AAAJ technical specifications.
General
| Capacitance | 220pF |
| Case Code (Imperial) | 2512 |
| Case Code (Metric) | 6432 |
| Package/Case | 2512 |
| Construction | Flat |
| Depth | 3.1mm |
| ESD Protection | No |
| ESR (Equivalent Series Resistance) | 100R |
| Height | 0.039inch |
| Lead Free | Lead Free |
| Length | 0.252inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Contacts | 10 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 100R |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | EZANT |
| Termination | SMD/SMT |
| Thickness | 800um |
| Tolerance | 30% |
| Width | 0.122inch |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EZA-NT34AAAJ Datasheet
Download the complete datasheet for Panasonic EZA-NT34AAAJ to view detailed technical specifications.
No datasheet is available for this part.

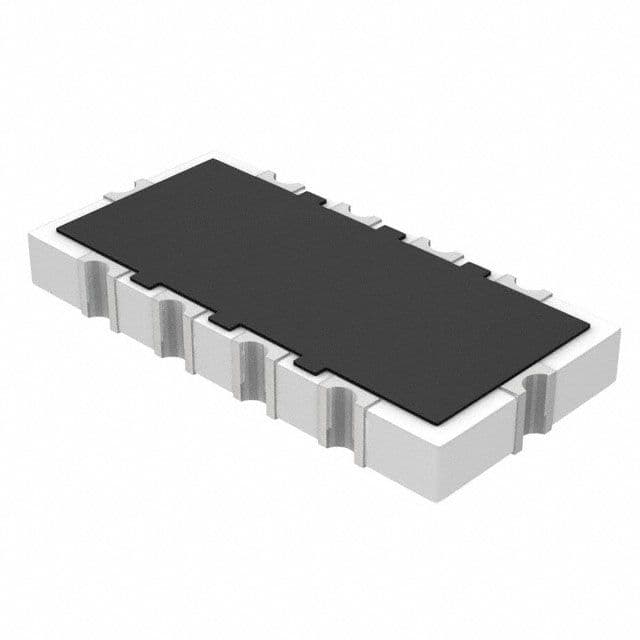

Product Images
