Surface mount RC network featuring 470 Ohm resistance with 5% tolerance and 100pF capacitance with 30% tolerance. This general EMI/RFI filter component operates at 25V, with a maximum operating temperature of 85°C and a minimum of -25°C. Constructed in a flat 1608 (4021 metric) SMD case, it measures 4mm in length, 2.1mm in depth, and 0.65mm in height. The component is RoHS compliant and packaged on tape and reel.
Package1608
Voltage25V
Capacitance100pF
Resistance470R
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic EZA-ST53AAAJ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic EZA-ST53AAAJ technical specifications.
General
| Capacitance | 100pF |
| Case Code (Imperial) | 1608 |
| Case Code (Metric) | 4021 |
| Package/Case | 1608 |
| Construction | Flat |
| Depth | 2.1mm |
| ESD Protection | No |
| Height | 0.65mm |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Contacts | 10 |
| Number of Elements | 4 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 470R |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | EZAST |
| Thickness | 650um |
| Tolerance | 30% |
| Voltage | 25V |
| Width | 0.083inch |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EZA-ST53AAAJ Datasheet
Download the complete datasheet for Panasonic EZA-ST53AAAJ to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

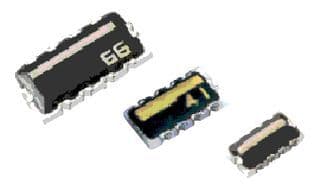

Product Images
