This 22nF ceramic SIDAC from Panasonic features a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum voltage rating of 6V DC and is designed for surface mount applications. The component is RoHS compliant and available in a tape and reel packaging with 5000 units per package.
Package0805
Capacitance22nF
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EZJ-S2VB223 technical specifications.
General
| Capacitance | 22nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Height | 1.25mm |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 6V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Size Code | 0805 |
| Termination | SMD/SMT |
| Varistor Voltage | 12V |
| DC Rated Voltage | 6V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EZJ-S2VB223 Datasheet
Download the complete datasheet for Panasonic EZJ-S2VB223 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

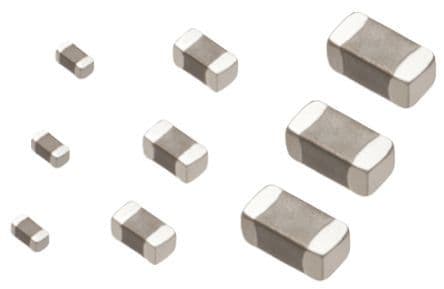

Product Images
