Surface mount SIDAC with a 170V varistor voltage and 18V DC rated voltage. Features 2.1pF capacitance and a 0504 case code. Operates within a -40°C to 85°C temperature range. This component is RoHS compliant and utilizes zinc material.
Package0504
Capacitance2.1pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EZJ-ZSV171AA technical specifications.
General
| Capacitance | 2.1pF |
| Case Code (Imperial) | 0504 |
| Case Code (Metric) | 1310 |
| Package/Case | 0504 |
| Clamping Voltage | 170V |
| Lead Free | Contains Lead |
| Lead Pitch | 0.64mm |
| Material | Zinc |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 18V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Size Code | 0504 |
| Termination | SMD/SMT |
| Thickness | 660um |
| Tolerance | 20% |
| Varistor Voltage | 170V |
| DC Rated Voltage | 18V |
| Width | 1mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EZJ-ZSV171AA Datasheet
Download the complete datasheet for Panasonic EZJ-ZSV171AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

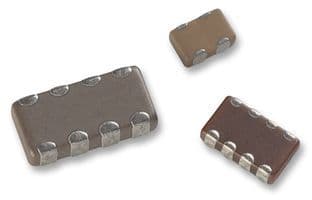

Product Images
