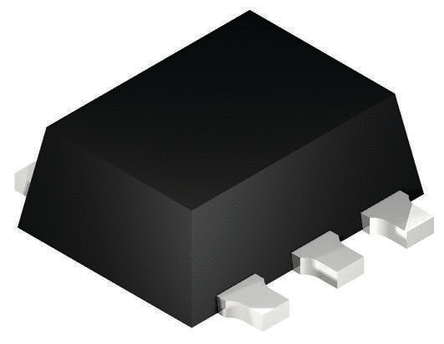

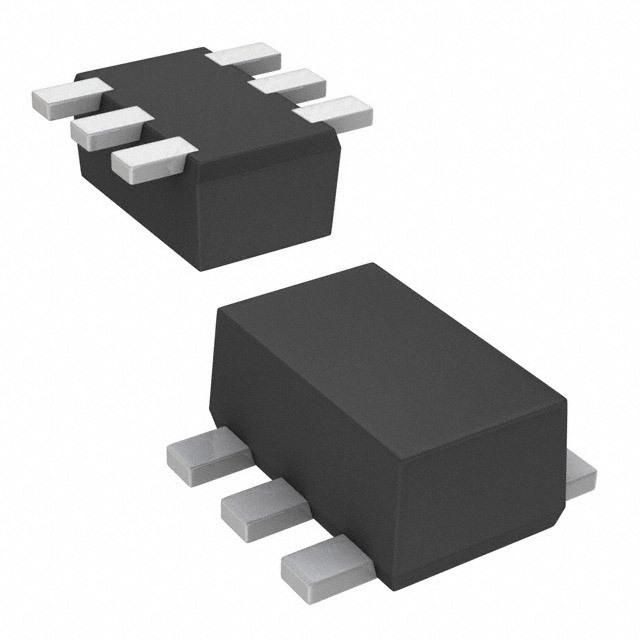

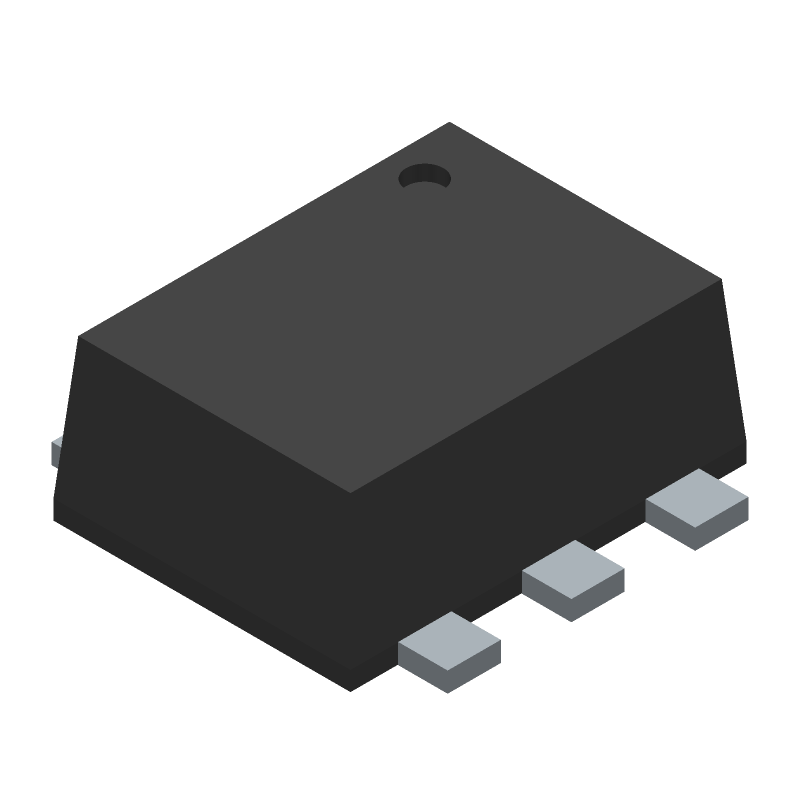

N-Channel and P-Channel Silicon Junction Field-Effect Transistor (JFET) for small signal applications. Features a 30V Drain to Source Voltage (Vdss) and 100mA Continuous Drain Current (ID). Surface mountable in a SOT-666 package, this device offers a Drain to Source Resistance of 17 Ohms and a Threshold Voltage of 1V. Operating temperature range from -40°C to 85°C with a maximum power dissipation of 125mW. HALOGEN FREE and ROHS COMPLIANT.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic FG6943010R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic FG6943010R technical specifications.
| Package/Case | SOT-666 |
| Continuous Drain Current (ID) | 100mA |
| Drain to Source Breakdown Voltage | -30V |
| Drain to Source Resistance | 17R |
| Drain to Source Voltage (Vdss) | 30V |
| FET Type | N and P-Channel |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.5mm |
| Input Capacitance | 12pF |
| Length | 1.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Nominal Vgs | 1V |
| Package Quantity | 8000 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 1V |
| Turn-Off Delay Time | 100ns |
| Turn-On Delay Time | 100ns |
| Width | 1.2mm |
| RoHS | Compliant |
