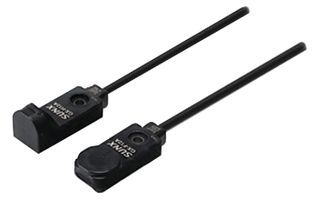

Rectangular inductive proximity sensor with a sensing range of 0mm to 3.3mm. Features a plastic body, panel mount, and cable lead termination. Operates with a DC supply voltage from 12V to 24V, providing a PNP output. Rated IP68 for environmental protection and offers a response frequency of 500Hz with a switching current of 15mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic GX-F12A-P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic GX-F12A-P technical specifications.
| Body Material | Plastic |
| Package/Case | Module |
| Contact Type | 1 maker |
| Depth | 7.1mm |
| Height | 7.1mm |
| Length | 27.8mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Mount | Panel |
| Operating Supply Voltage | 24V |
| Output Type | PNP |
| Ratings | IP68 |
| Reach SVHC Compliant | No |
| Response Frequency | 500Hz |
| RoHS Compliant | No |
| Sensing Method | Inductive |
| Series | GX |
| Shielding | Unshielded |
| Size | 7.1mm |
| Switching Current | 15mA |
| Termination | Cable Leads |
| Width | 12mm |
| RoHS | Not Compliant |
