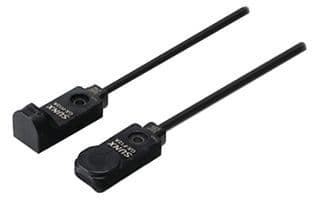

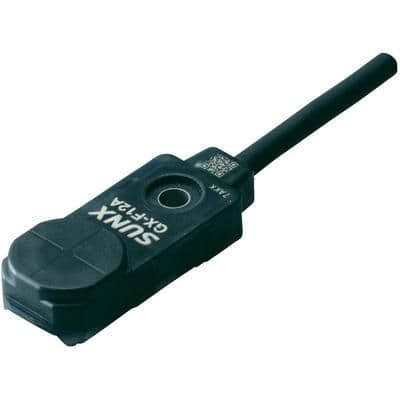

Rectangular inductive proximity sensor with a sensing distance of 4mm. Features a 12mm width, 7.1mm height, and 27.8mm length, with a 0mm minimum to 3.3mm maximum sensing range. Operates on 12V to 24V DC supply voltage, offering PNP and NPN output types. Rated IP68, it has a response frequency of 500Hz and a switching current of 15mA. Constructed with a plastic body and cable lead termination, suitable for panel or screw mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic GX-F12B-P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic GX-F12B-P technical specifications.
| Body Material | Plastic |
| Package/Case | Module |
| Contact Type | 1 breaker |
| Depth | 7.1mm |
| Height | 7.1mm |
| Lead Free | Lead Free |
| Length | 27.8mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Mount | Panel, Screw |
| Operating Supply Voltage | 24V |
| Output Type | PNP, NPN |
| Ratings | IP68 |
| Reach SVHC Compliant | No |
| Response Frequency | 500Hz |
| RoHS Compliant | No |
| Sensing Distance | 4mm |
| Sensing Method | Inductive |
| Series | GX |
| Shielding | Unshielded |
| Size | 7.1mm |
| Switching Current | 15mA |
| Termination | Cable Leads |
| Width | 12mm |
| RoHS | Not Compliant |
