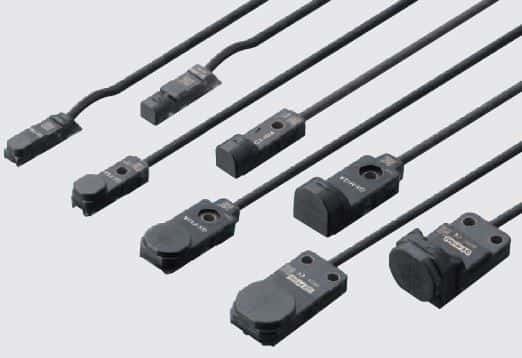

Inductive proximity sensor with an NPN output, featuring a plastic body and module package. Operates with a 24V supply voltage and offers a 400Hz response frequency. This unshielded sensor has a compact design with dimensions of 6mm depth, 25mm length, and 6mm width, suitable for panel mounting. Rated IP68 for environmental protection, it functions within a temperature range of -25°C to 70°C and has a switching current of 15mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic GX-F6A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic GX-F6A technical specifications.
| Body Material | Plastic |
| Package/Case | Module |
| Depth | 6mm |
| Length | 25mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Operating Supply Voltage | 24V |
| Output Type | NPN |
| Ratings | IP68 |
| Response Frequency | 400Hz |
| RoHS Compliant | No |
| Sensing Method | Inductive |
| Series | GX |
| Shielding | Unshielded |
| Switching Current | 15mA |
| Termination | Cable Leads |
| Width | 6mm |
| RoHS | Not Compliant |
