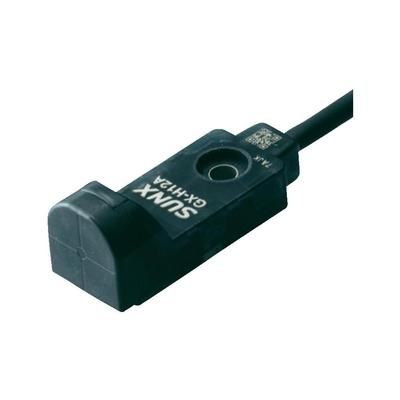

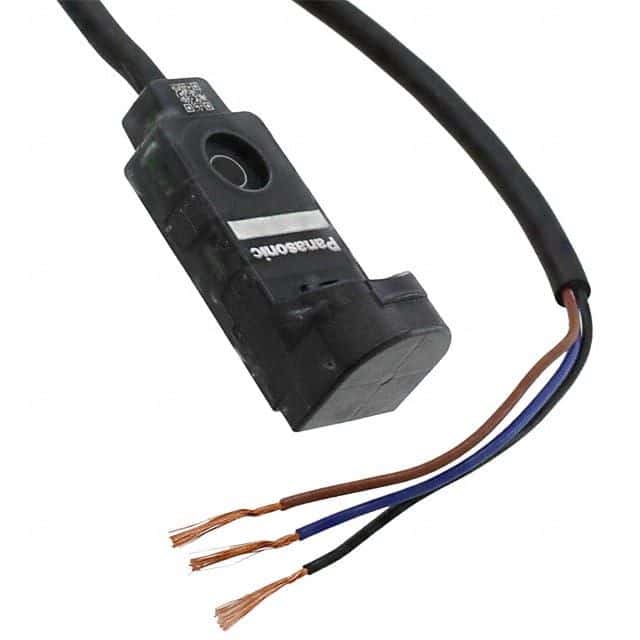

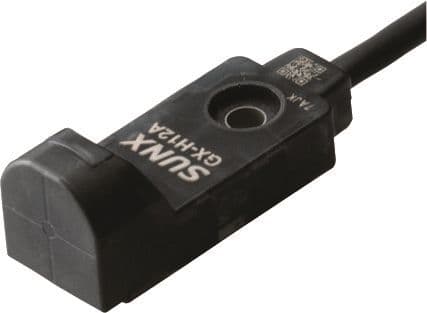

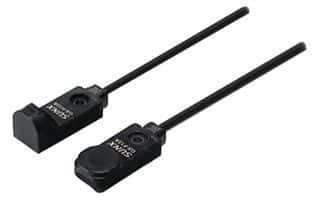

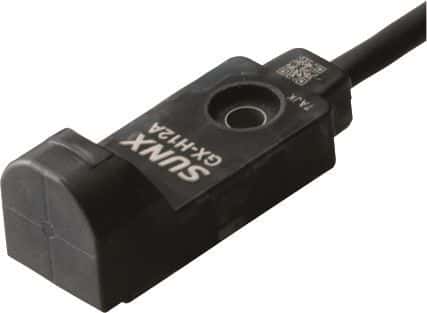

Inductive proximity sensor with PNP output, normally closed (NC) contact. Features a 4mm sensing distance and operates within a 12V to 24V DC supply voltage range. This plastic-bodied module offers a response frequency of 500Hz and a switching current of 15mA. Rated IP68 for environmental protection, it has a compact form factor with dimensions of 27.8mm length, 12mm width, and 7.1mm height, and operates from -25°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic GX-H12B-P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic GX-H12B-P technical specifications.
| Body Material | Plastic |
| Package/Case | Module |
| Contact Type | 1 breaker |
| Depth | 13mm |
| Height | 7.1mm |
| Lead Free | Lead Free |
| Length | 27.8mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Mount | Cable |
| Operating Supply Voltage | 24V |
| Ratings | IP68 |
| Reach SVHC Compliant | No |
| Response Frequency | 500Hz |
| RoHS Compliant | No |
| Sensing Method | Inductive |
| Series | GX |
| Shielding | Unshielded |
| Size | 7.1mm |
| Switching Current | 15mA |
| Termination | Cable Leads |
| Width | 12mm |
| RoHS | Not Compliant |
