Rectangular inductive proximity sensor with a sensing range of 0mm to 2.1mm. Features a plastic body, unshielded design, and cable termination. Operates with a 24V supply voltage and offers a switching current of 15mA at a 500Hz response frequency. Rated IP68 for environmental protection, with an operating temperature range of -25°C to 70°C.
PackageModule
MountingCable
Quick Jump:
Technical Specifications
Panasonic GX-H8A-P technical specifications.
General
| Body Material | Plastic |
| Package/Case | Module |
| Depth | 9.1mm |
| Length | 26mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Cable |
| Operating Supply Voltage | 24V |
| Ratings | IP68 |
| Response Frequency | 500Hz |
| RoHS Compliant | No |
| Sensing Method | Inductive |
| Series | GX |
| Shielding | Unshielded |
| Switching Current | 15mA |
| Termination | Cable Leads |
| Width | 8mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Panasonic GX-H8A-P Datasheet
Download the complete datasheet for Panasonic GX-H8A-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

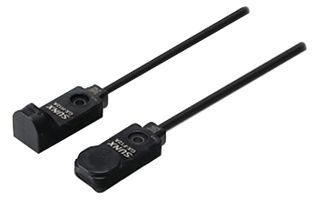

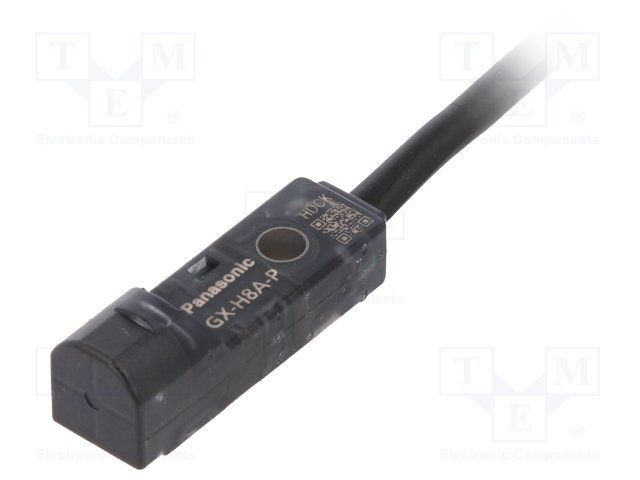

Product Images
